的主要用途与简洁/Brief introduction：

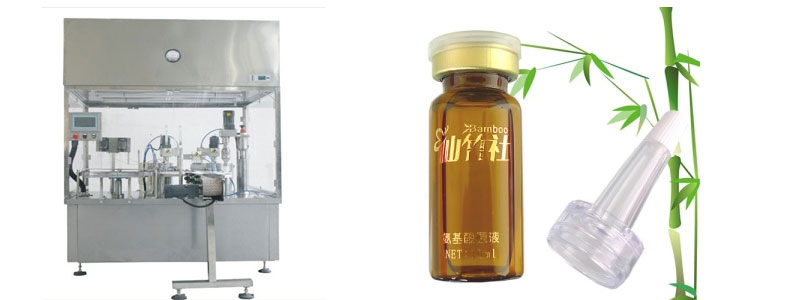

机器是在培育和消化国外的比较好的技艺的基本上，我装修公司有意识的主动研发团队的一类专门对应西林瓶的灌装生产线、上塞、旋（轧）盖机。机器选择欧美全出口高精密度较全开放式凸轮机构度数流水线工器，精密度较高，自动运行安全可靠，利用生命周期长。该度数器结构特征简单化，长年利用不能自己维护保养。该系统主要适使用在于多种多样小摄入量介质的包装、压塞及旋（轧）盖，如精油功效、接种剂等。丰富使用在肉制品、医药、医药化工相关行业及研究科技领域。终端服务器既可单人种植，又可与洗瓶机、吹干机等系统分解成连动种植线。是完全合适国家地区GMP的让。该系统会要根据的客户的让在线升级电力显卡配置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

基本特征/Characteristic:：

◆人机对战网页重设、操作步骤正确性以便于、PLC操纵，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆定频设定、生产方式访问速度多个控制、重新计算。Frequency control, the production rate be adjusted automatically count  ◆会自动断电功能表，无瓶不装灌。No bottle no filling.◆圆轮地位式罐装，稳定性信得过。Disc positioning filling, stable and reliable.◆高精密度较轴承度数计的控制，标记*。High-precision cam meter control, precise positioning.◆进行SUS304及316L不锈钢圆管创造，几乎满足GMP让。SUS304 and 316L stainless steel, full compliance with GMP requirements.

技術参数设置/ technical parameters：

装量比率Filling volume	5-50ml
装量差值loading error	≤ ±1%
旋（轧）盖完成率 Rotation (rolling) Cover pass rate:	≥99%
产出功能Production capacity	30-60瓶/分 钟  高转速 70-100瓶/分 钟 &nbs🦂p;   快速路 30-60 bottles / min  70-100♎ bottles / minute (hig🌞h speed)
压塞率Tamponade rate	≥99%
电 Power	380V/50Hz
电功率Power	2.0 kw
机械总重量Net weight	600 kg
外观尺码 Dimension	2000*1000*1500mm
