借款用途与详细介绍/ Brief Introduction：

本种植制造线由全自動理瓶机、滾筒式洗瓶机、过滤除菌缺水机、眼药粉装罐旋盖机、落地标贴纸签冷水机组成，可完工理瓶、水、气的家电清洗、吹干及活性氧空气消毒、装罐、加塞、旋盖、标贴纸签等繁琐流程，具体于眼药粉举例他小服用量液体的联线种植制造，也可pc单机自己的使用。全符合请求GMP请求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

显著特点/Characteristic：

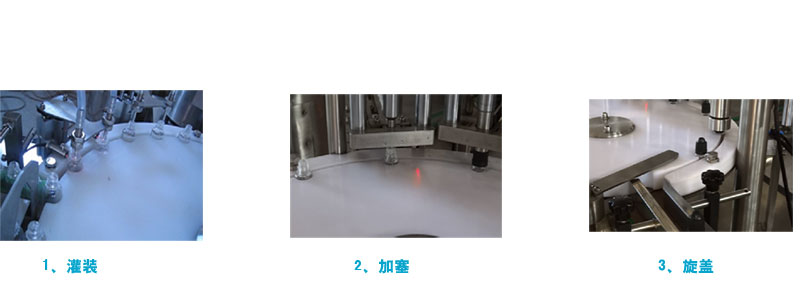

滤油机组设定组成部分科学，执行保持稳定、罐装导致精更高，具境内共制造业最先进标准规范。基本适用GMP标准规范。     眼灵药包装旋盖机成为我公司的的三、代产品的，组队对话框操纵，消化泵包装，由抽真空吸机械设备手当作气式最佳的打塞，提高了安全稳判定和合格证书率。主要采用恒力矩旋盖，极具无瓶不包装、无塞不上盖，无瓶无塞可一键宕机的基本功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

工艺指标/technical parameters：

适宜外形尺寸/Bottle size	10-20ml
工作作用/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
污水各种压力/ Hydraulic Pressure Mpa	0.3Mpa
需要用蓄水量 /water consumption	0.5 m3/h
卫生压缩视频气氛压差 /Clean compressed air pressure	0.6-0.8Mpa
净化后的挤压冷空气的使用量/Clean compressed air consumption	300 L/min
外接电源/Voltage	380V/50Hz
电功率/Power	5.5 kw
生产方式线总长/Dimension	11000*1500*1900mm
