主要用途与筒介/Purpose and introduction：

NQGF型西林瓶粉针洗烘灌装轧盖标贴一体化线 由QCL产品落地式高周波心动图波洗瓶机、AQMR隧洞式自动空调反复的灭菌方法处理干燥箱、NQFGX产品数控加工丝杆粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴汽轮发电机组成，也可手机单机选用。满足于7-25ml金桥铜业跨接线的截面积大小的西林瓶粉针的生产的。能提交喷淋系统打压试验、高周波心动图波粗洗、瓶侧壁水清扫清洁工作阴道、瓶开口处陆续三次反复的水清扫清洁工作阴道、一下吹气、一下清爽水清扫清洁工作阴道、陆续三次吹气、瓶侧壁吹气、清洁工作、暖机、风干灭菌方法处理去热原、保压、灌装、加塞、轧盖、标贴等二十几道道工序流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

作用/characteristic：

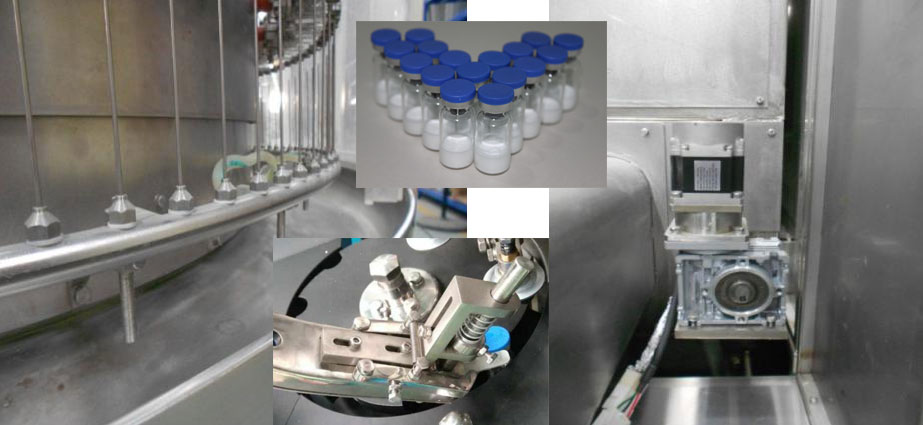

◆洗瓶机主要包括机诫手夹瓶，符合多种多样年纪的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶主要包括热气喷针往复运动追踪插进方试，的洗涤目的好，得节约再生能源。并配有针架防会抖控制系统，延长喷针插进小瓶的准确无误度，抑制断针物理现象进行；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整水蒸气输送管、喷针基本单独的独立，防止了交叉点被污染的，复合GMP标准让；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前安装缓解块，有保证丝杠，限制碎瓶效应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶分为总布局国外进口云同步带，接入拨瓶块气流输送西林瓶，操作平稳靠得住；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱选取热气反复热处理加热，平均温度不光滑，节电；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱有防无缘无故无电庇护功能性。进行安全的；Mixer oven has suddenly loses power protection function. Run security;◆烘干箱可配巡环水冷散热器装备，不损耗量房間排风量，增多房間的压差大不不平衡量的可能性降低温度的作用好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空干燥箱可配压力大电脑自动和平控制软件系统少屋里和真空干燥箱的压力大不和平导致的工作温度过高段摆动，分装间洗烘间工作温度升中等职业一型号的现象；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱设置有DOP探测电源接口(涵盖风压差、风速等级、浮尘塑料颗粒探测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱加热段可带在线视频消毒技能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆真空烘箱网带可带超声波牵连CIP迅雷在线刷洗系统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可确定全多方面、多想法高压力水清洗阴道；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机分为國際更最先进的规划安全理念，兼有高速公路度，并且分瓶最准，修改的规格件不便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆包装机利用交流信息伺服线束调速电机驱使包装挤出机螺杆补偿器，装量高精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开包装机选用装量的调控马上在手触屏上满足；Mixer packer adopts the load adjustment directly on a touch screen;◆包装机待选配百级反复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶开始全自动灌装机，无瓶要加塞工作。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线进行PLC总掌握、变频式器、触屏屏掌握技术工艺，运营稳固信得过。触屏屏可提示各单机联机的运营状况，各掌握点的水量、大气压力、风压差、温等提示，各面板开关状况和电脑告警问题提示，电脑告警问题自我表现鉴别诊断和电脑告警问题深入分析及除掉方法步骤。使这个出产的过程符合主动化掌握，联线具自动化控制平衡量系统，提高出产营养均衡信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.按照潜在客户的要求，还可供选用：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三凌、台达等名牌调控设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、水温表及高周波波抗压强度、尘沙激光束、风力网络检查、警报器、记下、彩印系统化；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌分隔器系统软件。ORABS, CRABS, aseptic isolator system.

方法性能：/technical parameters

款型 model

生育本事production capacity

洗瓶及格率Washing bottle percent of pass

洗瓶已经破损率Washing bottle breakage

过滤除菌室温sterilizing temperature

灌装测量误差The repackaging of error

加塞良好率率Gasser percent of pass

大气层流干净干燥度Laminar air cleanliness

机械泵抽速Vacuum pumping speed

电容器量 capacitance

供电power supply

总电量显示Total transmission energy

外型长宽高boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
